√ Output Tests on ALLISON DOC Software (ALLISON Transmission)

Output Tests

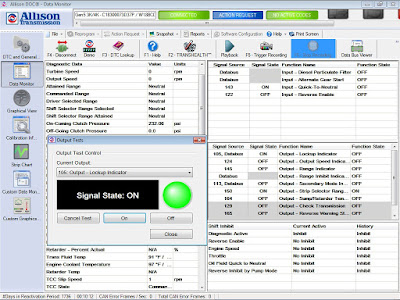

Figure 1.1 - Output Test Control

Read More:


Output Tests (Only available for 5th Gen Controls Systems)
  • Temporarily turns ON and OFF output wires.
  • The vehicle should be stopped and Transmission should be in Neutral/ Park to run any Output Tests.

To Initiate the Output Tests:
Action Request - Output Tests
  • The Output Tests warning message displays.
  • Click "Accept" to accept responsibility, the Output Test window displays as Figure 1.1 above.
Output Tests - Warning Message
  • From the "Current Output" drop-down list, select an output wire to test.
Current Output
  • Click the ON or OFF button to test the output wire. The "Signal State" and lamp should change accordingly. Use "Data Monitor" to monitoring the "Signal State" on ALLISON DOC.
Output - Range Indicator

Output - Lockup Indicator
Output - Output Speed Indicator A
Output - Secondary Mode Indicator
Output - Sump/Retarder Temperature Indicator
Output - Strip Selector Range Indicator
